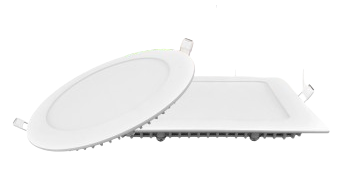

LED Panel Light

Grand

LED Panel Light


Item Code Power Col.Temp PF Light Flux Dimension Cut. Dia. CRI Angle
OS-M01-3R 3 3000K >0.6 180-210lm 85*21 75 80 120
OS-M01-3R 3 4000K >0.6 180-210lm 85*21 75 80 120
OS-M01-3R 3 6500K >0.6 180-210lm 85*21 75 80 120
Grand

LED Panel Light


Item Code Power Col.Temp PF Light Flux Dimension Cut. Dia. CRI Angle
OS-M04-4R 12 3000K >0.95 1080-1200lm 120*13.5 45-105 80 120
OS-M04-4R 12 4000K >0.95 1080-1200lm 120*13.5 45-105 80 120
OS-M04-4R 12 6500K >0.95 1080-1200lm 120*13.5 45-105 80 120
Grand

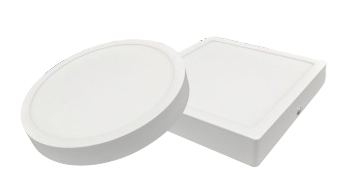

LED Surface Panel Light


Item Code Power Col.Temp PF Light Flux Dimension CRI Angle
OS-M07-4R 8 3000K >0.5 560-600lm 110*26 80 120
OS-M07-4R 8 4000K >0.5 560-600lm 110*26 80 120
OS-M07-4R 8 6500K >0.5 560-600lm 110*26 80 120
Grand

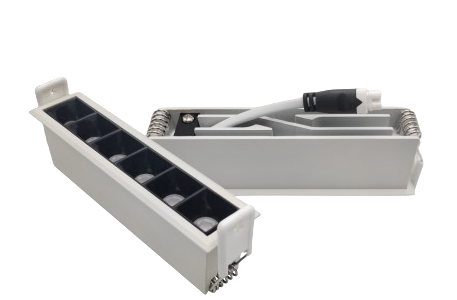

LED Linea Light


Item Code Power Col.Temp PF Light Flux Dimension Cut. Dia. CRI Angle
OS-L01 5 3000K >0.9 300-350lm 68*30*35 64*26 80 24
OS-L01 5 4000K >0.9 300-350lm 68*30*35 64*26 80 24
OS-L01 5 6500K >0.9 300-350lm 68*30*35 64*26 80 24
Grand

Sleek Round 3In1


Product Lumen Std. Packing
3w Sleek Round 225 lm 20
6W Sleek Round 510 lm 20
12W Sleek Round 1020 lm 20
15W Sleek Round 1275 lm 20
20W Sleek Round 1700 lm 10
Description Size Φ*H (mm) Cut out Size Φ(mm)
3W Sleek Round / 3 Inch 93*21 mm 75 mm
6W Sleek Round / 4 Inch 118*21 mm 100 mm
12W Sleek Round / 5 Inch 142*21 mm 125 mm
15W Sleek Round / 6 Inch 168*21 mm 152 mm
20W Sleek Round / 8 Inch 216*21 mm 200 mm

* Available in 3 colors (White, Warm white, and Natural White)

* Body material-Polycarbonate

* Recessed Slim Edgelit panel with External driver.


Grand

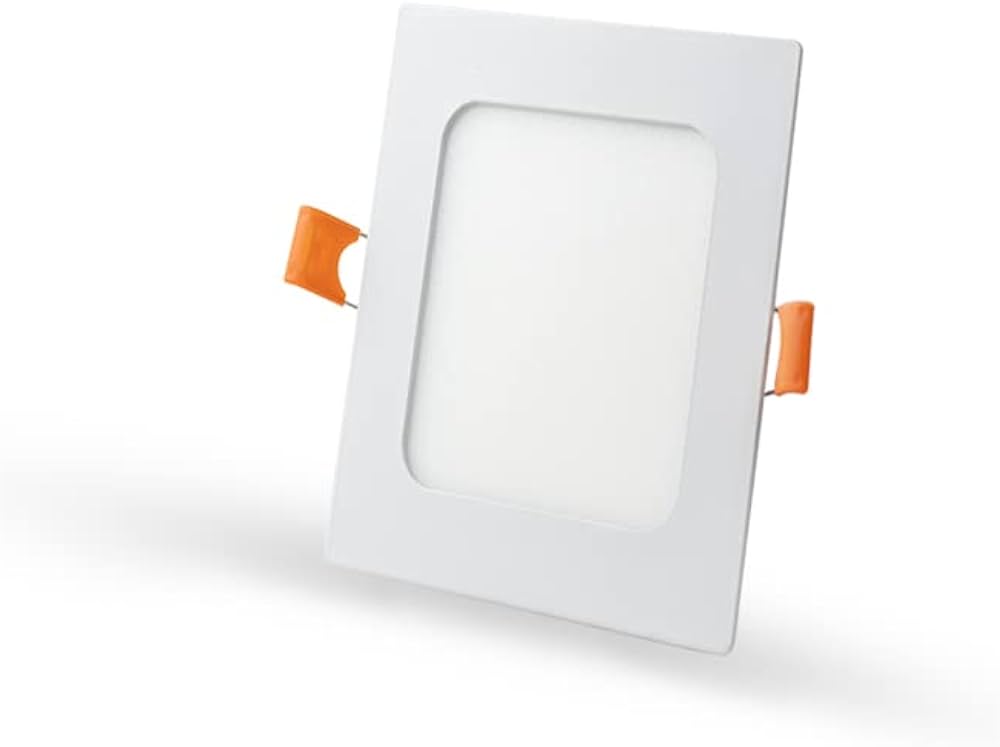

Sleek Square


Product Lumen Std. Packing
3w Sleek Square 225 lm 20
6W Sleek Square 510 lm 20
12W Sleek Square 1020 lm 20
15W Sleek Square 1275 lm 20
20W Sleek Square 1700 lm 10
Description Size L*W*H (mm) Cut out Size L*W (mm)
3W Sleek Square / 3 Inch 93*93*21 mm 75*75 mm
6W Sleek Square / 4 Inch 118*118*21 mm 100*100 mm
12W Sleek Square / 5 Inch 142*142*21 mm 125*125 mm
15W Sleek Square / 6 Inch 168*168*21 mm 152*152 mm
20W Sleek Square / 8 Inch 216*216*21 mm 200*200 mm

* Available in 3 colors (White, Warm white, and Natural White)

* Body Material-Polycarbonate

* Recessed Slim Edgelit panel with External driver.


Grand

Wave Round


Product Lumen Std. Packing
3w Wave Round 225 lm 20
6W Wave Round 510 lm 20
12W Wave Round 1020 lm 20
15W Wave Round 1275 lm 20
20W Wave Round 1700 lm 10
Description Size Φ*H (mm) Cut out Size Φ(mm)
3W Wave Round / 3 Inch 93*25 mm 75 mm
6W Wave Round / 4 Inch 118*25 mm 100 mm
12W Wave Round / 5 Inch 142*25 mm 125 mm
15W Wave Round / 6 Inch 168*25 mm 152 mm
20W Wave Round / 8 Inch 216*25 mm 200 mm

* Available in 3 colors (White, Warm white, and Natural White)

* Body Material-Polycarbonate

* Recessed Slim Edgelit panel with Integrated Control Gear.


Grand

Wave Square


Product Lumen Std. Packing
3w Wave Square 225 lm 20
6W Wave Square 510 lm 20
12W Wave Square 1020 lm 20
15W Wave Square 1275 lm 20
20W Wave Square 1700 lm 10
Description Size L*W*H (mm) Cut out Size L*W(mm)
3W Wave Square / 3 Inch 93*93*25 mm 75*75 mm
6W Wave Square / 4 Inch 118*118*25 mm 100*100 mm
12W Wave Square / 5 Inch 142*142*25 mm 125*125 mm
15W Wave Square / 6 Inch 168*168*25 mm 152*152 mm
20W Wave Square / 8 Inch 216*216*25 mm 200*200 mm

* Available in 3 colors (White, Warm white, and Natural White)

* Body Material-Polycarbonate

* Recessed Slim Edgelit panel with Integrated Control Gear.


Grand

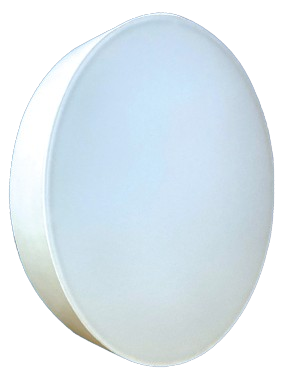

Jonex Round


Product Lumen Std. Packing
6w Jonex Round 800 lm 20
15W Jonex Round 1500 lm 20
22W Jonex Round 2200 lm 20
Description Size Φ*H(mm) Cut out Size Φ(mm)
6W Jonex Round 100*32mm NA
15W Jonex Round 125*32mm NA
22W Jonex Round 150*32mm NA

* Available in 3 colors (White, Warm white, and Natural White)

* Elegant rimless design with Polycarbonate body.

* Surface Backlit Panel with Integrated Control Gear.


Grand

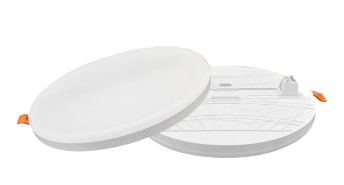

Ultra Round


Product Lumen Std. Packing
3w Ultra Round 270 lm 20
6W Ultra Round 600 lm 20
12W Ultra Round 1200 lm 20
15W Ultra Round 1500 lm 20
22W Ultra Round 2200 lm 20
Description Size Φ*H (mm) Cut out Size Φ(mm)
3W Ultra Round / 2.5 Inch 80*35 mm 62.5 mm
6W Ultra Round / 4 Inch 115*35 mm 100 mm
12W Ultra Round / 5 Inch 145*35 mm 125 mm
15W Ultra Round / 6 Inch 165*35 mm 150 mm
22W Ultra Round / 8 Inch 220*35 mm 200 mm

* Available in 3 colors (White, Warm white, and Natural White)

* Body Material-Polycarbonate

* Recessed Backlit panel with internal driver.


Grand

Ultra Square


Product Lumen Std. Packing
3w Ultra Square 270 lm 20
6W Ultra Square 600 lm 20
12W Ultra Square 1200 lm 20
15W Ultra Square 1500 lm 20
22W Ultra Square 2200 lm 20
Description Size L*W*H(mm) Cut out Size L*W(mm)
3W Ultra Square / 2.5 Inch 80*80*35 mm 62.5*62.5 mm
6W Ultra Square / 4 Inch 115*115*35 mm 100*100 mm
12W Ultra Square / 5 Inch 145*145*35 mm 125*125 mm
15W Ultra Square / 6 Inch 165*165*35 mm 150*150 mm
22W Ultra Square / 8 Inch 220*220*35 mm 200*200 mm

* Available in 3 colors (White, Warm white, and Natural White)

* Body Material-Polycarbonate

* Recessed Backlit panel with internal driver.


Grand

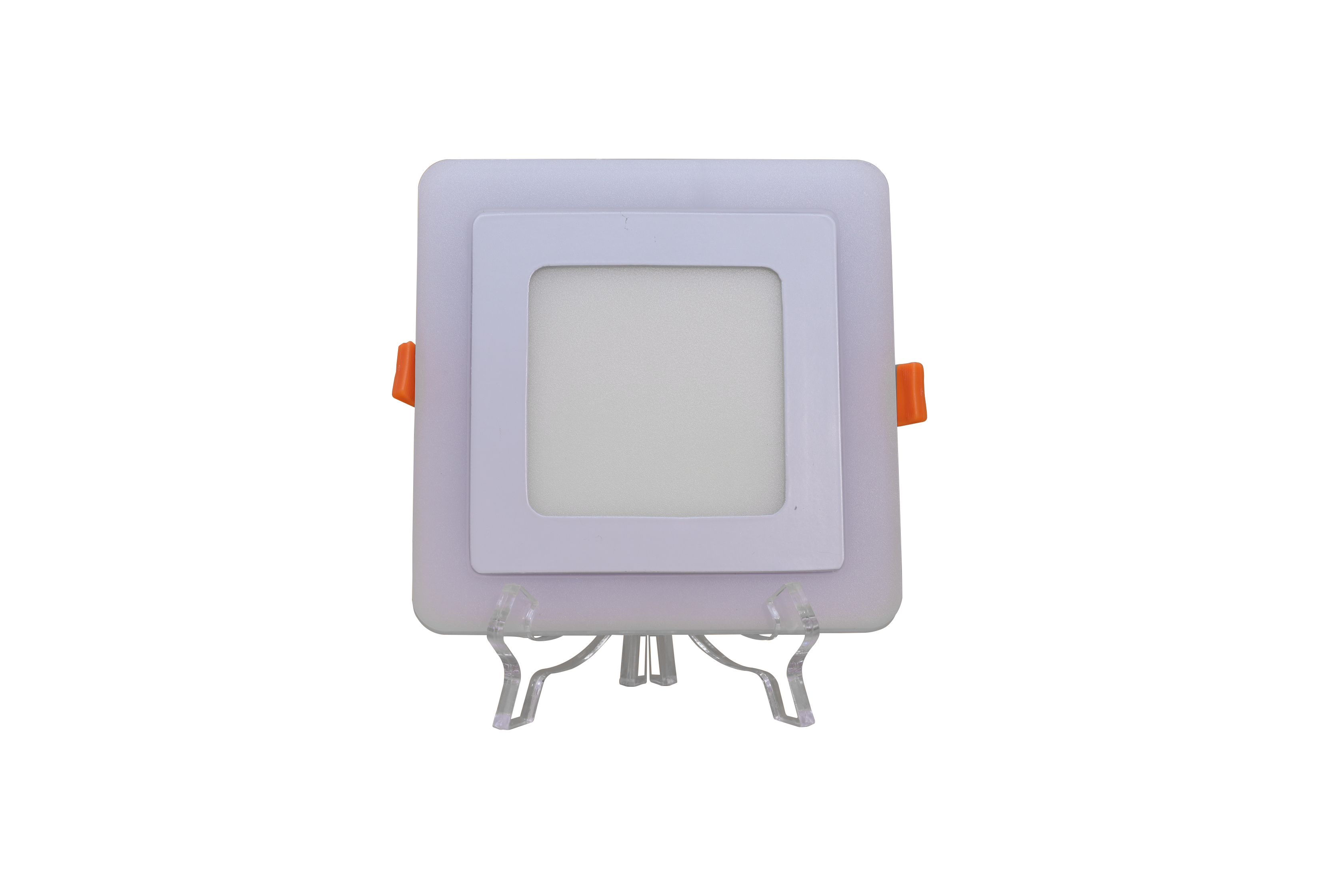

Trio LED Panel


Product Lumen Std. Packing
6W + 6W Panel 480 lm 20
Description Size Φ*H(mm) Cut out Size Φ(mm)
6W + 6W Panel 145*28mm 100mm

* 6 Watt for white color, 6 Watt for multicolor.

* Body Material-Polycarbonate

* Recessed Slim Edgelit panel with Integrated Control Gear.
